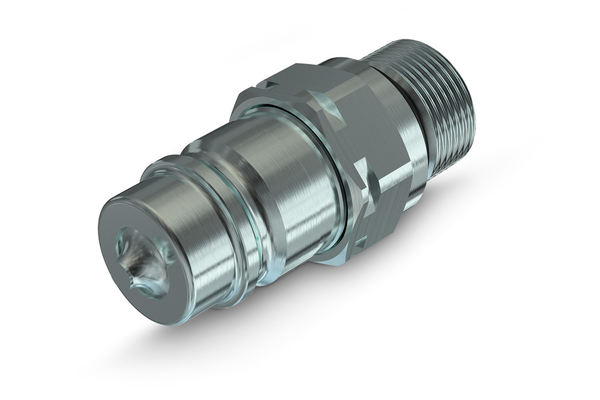

CNV087/1615 M
Faster CNV-Plug

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	250
  Thread + standard:	Metric bulkhead short ISO 8434-1-L
  Thread [GA]:	M16x1,5
  Pipe Ø R [mm]:	10L

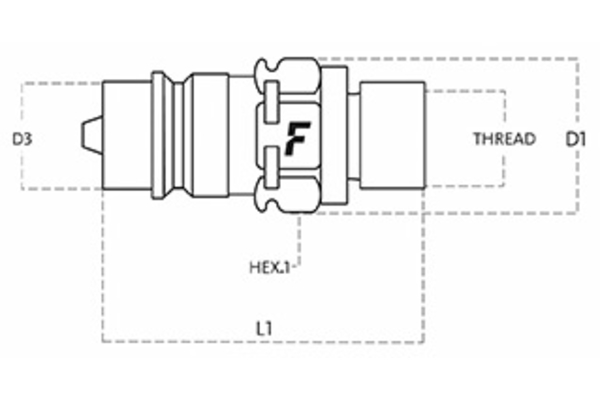

  Outer Ø plug [mm]:	20,5
  Length plug [mm]:	73,5
  SW [mm]:	27
  SW2 [mm]:	22
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	75
  Applications:	Agriculture
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
