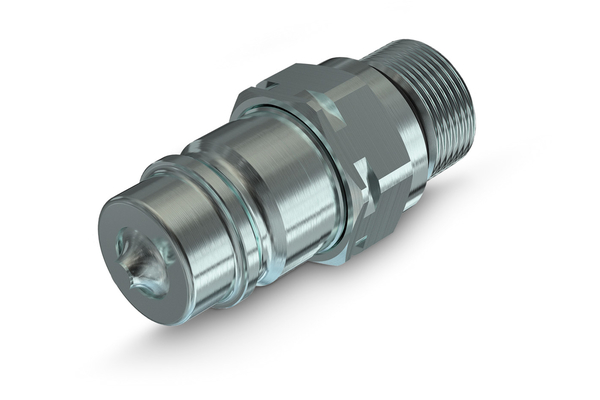

CNV123/302 M
Faster CNV-Plug

Product info

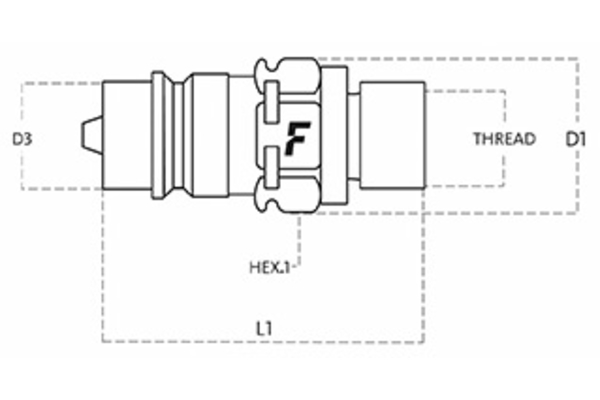

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	Metric male-thread ISO 8434-1-S
  Thread [GA]:	M30x2
  Pipe Ø R [mm]:	20S
  Outer Ø plug [mm]:	29,0
  Length plug [mm]:	83,2
  SW [mm]:	34
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	160
  Applications:	Agriculture
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
