CNV162/362 M
Faster CNV-Plug

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	220
  Thread + standard:	Metric male-thread ISO 8434-1-L

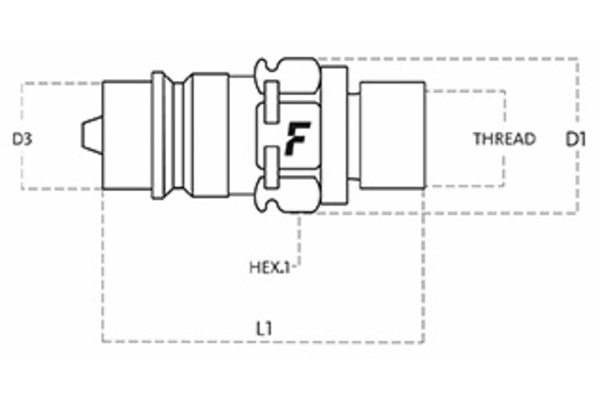

  Thread [GA]:	M36x2
  Pipe Ø R [mm]:	28L
  Outer Ø plug [mm]:	34,3
  Length plug [mm]:	70,0
  SW [mm]:	38
  SW1 [mm]:	38
  l/min at ΔP=2 bar:	270
  Applications:	Agriculture
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
