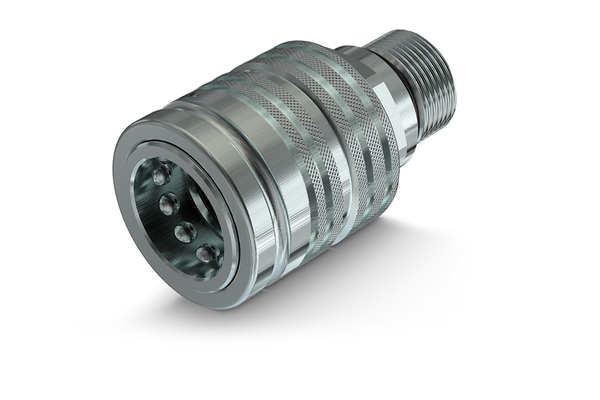

CPV06 12 GAS F
Faster CPV-Sleeve

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	270
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/2
  Outer Ø sleeve [mm]:	33,0
  Length sleeve [mm]:	65,5
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	24
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
