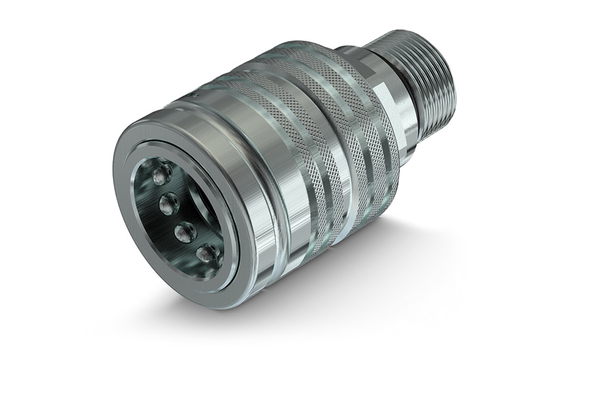

CPV0812/12SAEF
Faster CPV-Sleeve

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	250
  Thread + standard:	ORFS (UN) bulkhead ISO 8434-3
  Thread [GA]:	13/16
  Outer Ø sleeve [mm]:	38,0
  Length sleeve [mm]:	85,8
  SW [mm]:	27
  SW2 [mm]:	27
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	75
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
