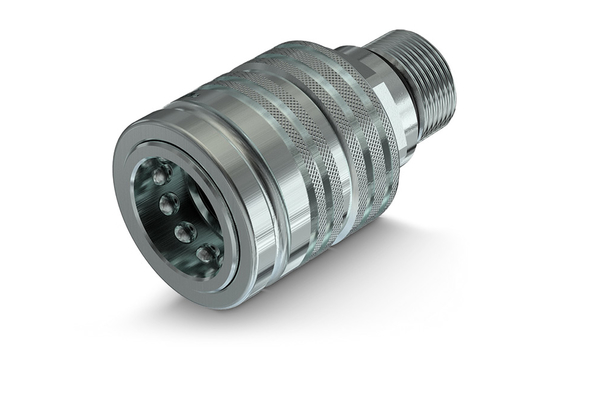

CPV165/362 F
Faster CPV-Sleeve

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	220
  Thread + standard:	Metric bulkhead ISO 8434-1-L
  Thread [GA]:	M36x2
  Pipe Ø R [mm]:	28L
  Outer Ø sleeve [mm]:	54,0
  Length sleeve [mm]:	113,8
  SW2 [mm]:	46
  SW1 [mm]:	42
  l/min at ΔP=2 bar:	270
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
