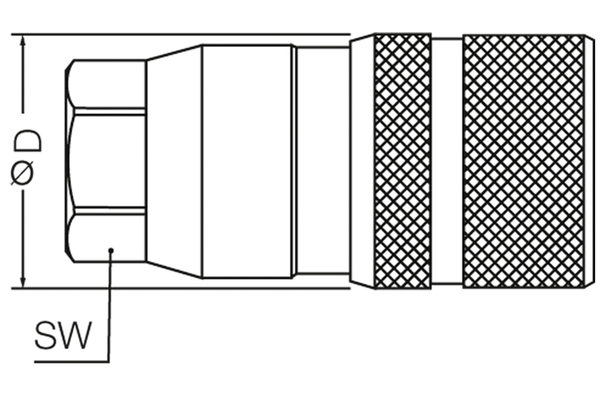

ST-FF06ORMS06M
Plug-in coupling series ST-FF Sleeve

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	350
  Thread + standard:	ORFS (UN) bulkhead ISO 8434-3
  Thread [GA]:	11/16"
  Outer Ø sleeve [mm]:	27
  Length sleeve [mm]:	91,4
  SW2 [mm]:	25
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	25
  Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Standard:	ISO 16028
  Surface:	Mate 1000 (Zinc-Nickel)
  Temperature range [°C]:	-25°C to +100°C
