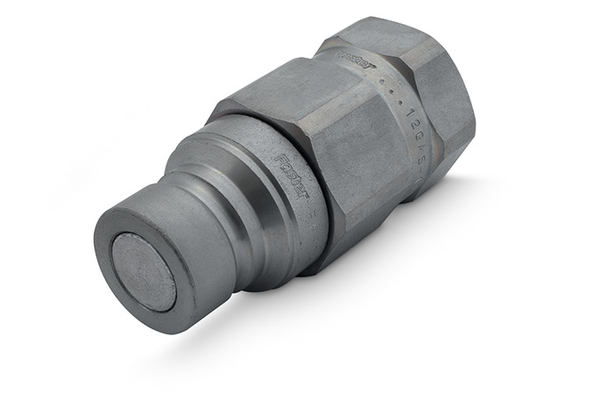

Flat-Face FFH male coupling (ISO 16028)

Quick-release reference coupling for the construction industry and other applications, where a flat face system is advantageous, compatibility according to ISO 16028

To accessories

Detail

Art. No.

ST-FF06BSP10S-VIT

ST-FF08BSP12S-VIT

Size

Inch

3/8

1/2

working pressure [bar]

350

Thread + standard

BSP female-thread ISO 1179-1

Thread [GA]

3/8"

1/2"

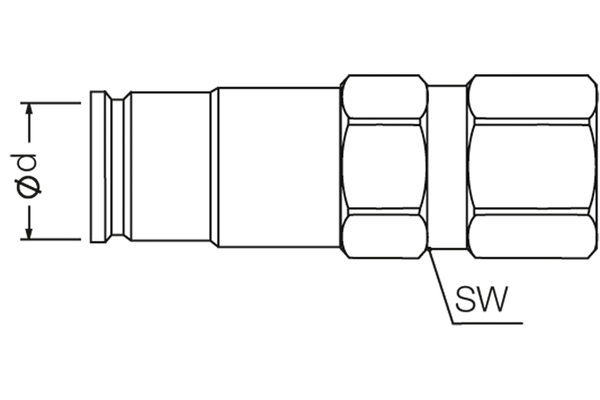

Outer Ø plug [mm]

19,7

24,5

Length plug [mm]

68,3

75,0

SW2 [mm]

SW1 [mm]

l/min at ΔP=2 bar

110

Quantity

Product info

Technical data

Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	NBR & PUR
Resistance against red rust [h]:	1000
Resistance against white rust [h]:	500
Standard:	ISO 16028
Surface:	Mate 1000 (Zinc-Nickel)
Temperature range [°C]:	-25°C to +100°C

Benefit

ST-FF has been tested with 1.000.000 impulses and exceeds the market standard in wear resistance and working pressure.

Practical tip

ST-FF is interchangeable within the ISO16028. Please note that ST-FF is not designed to connect against residual pressure. However if you can't avoid residual pressure in your hydraulic circuit please refer to our Seriess ST-3FF.
