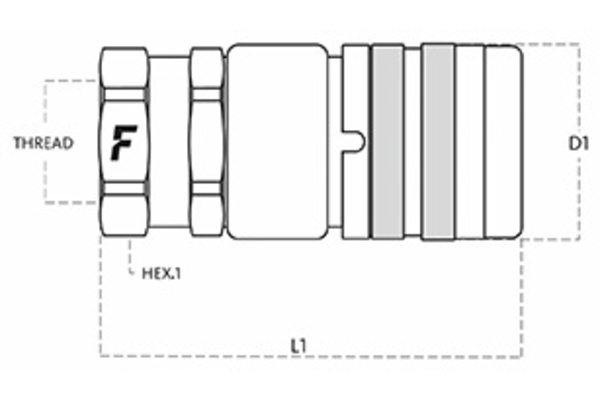

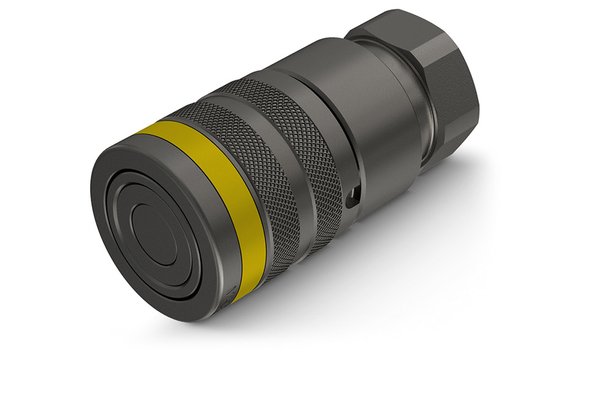

FFHP female coupling

Detail

Art. No.
DN
06
10
Size
04
06
Inch
1/4
3/8
working pressure [bar]
720
720
Thread + standard
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
Thread [GA]
1/4
3/8
Outer Ø sleeve [mm]
29,2
32,2
Length sleeve [mm]
58,9
75,5
SW [mm]
24
27
SW1 [mm]
24
27
l/min at ΔP=2 bar
25
46
Quantity
