HNV 1 NPT F 2V

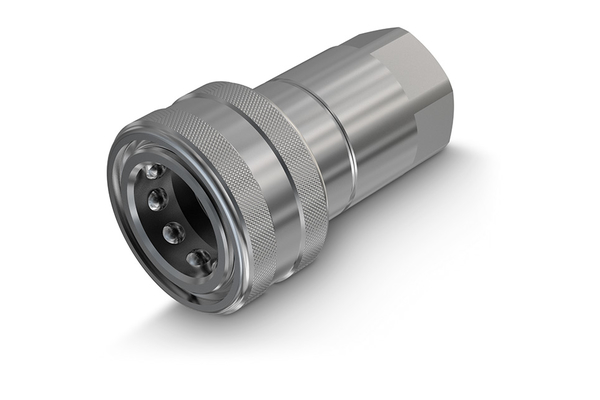

Faster HNV-Sleeve (stainless steel)

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	210
  Thread + standard:	NPT Innengewinde ANSI B1.20.3
  Thread [GA]:	1
  Outer Ø sleeve [mm]:	60,0
  Length sleeve [mm]:	106,0
  SW [mm]:	41
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	150
  Applications:	Industrial, Oil & Gas, Air Conditioning Refrigeration
  Female or male coupling:	Sleeve
  Material Casing:	Stainless steel
  Material sealing:	FKM
  Standard:	ISO 7241-1B
  Temperature range [°C]:	-20 °C to 200 °C
