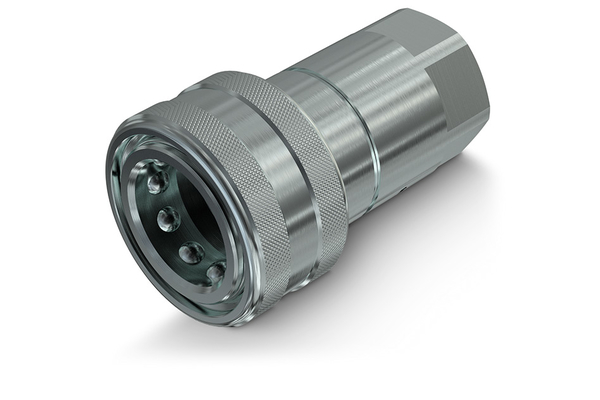

HNV 14 NPT F
Faster HNV-Sleeve

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	450
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1/4
  Outer Ø sleeve [mm]:	28,0
  Length sleeve [mm]:	56,0
  SW [mm]:	19
  SW1 [mm]:	19
  l/min at ΔP=2 bar:	17
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1B
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	-25 °C to 125 °C
