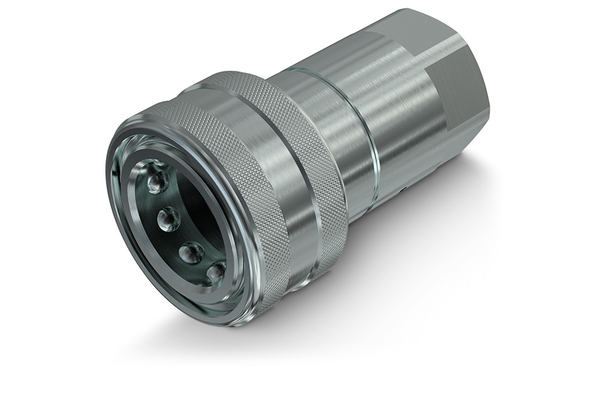

HNV 18 GAS F
Faster HNV-Sleeve

Product info

• Technical data

  DN:	05
  Size:	02
  Inch:	1/8
  working pressure [bar]:	500
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/8
  Outer Ø sleeve [mm]:	23,0
  Length sleeve [mm]:	50,3
  SW [mm]:	18
  SW1 [mm]:	18
  l/min at ΔP=2 bar:	5
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1B
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	-25 °C to 125 °C
