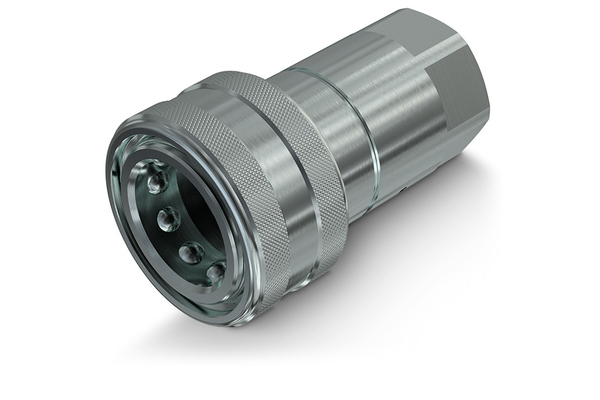

HNV 38-38SAE F
Faster HNV-Sleeve

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	SAE (UNF) female-thread ISO 11926-1
  Thread [GA]:	9/16
  Outer Ø sleeve [mm]:	35,0
  Length sleeve [mm]:	64,0
  SW [mm]:	24
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	50
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1B
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	-25 °C to 125 °C
