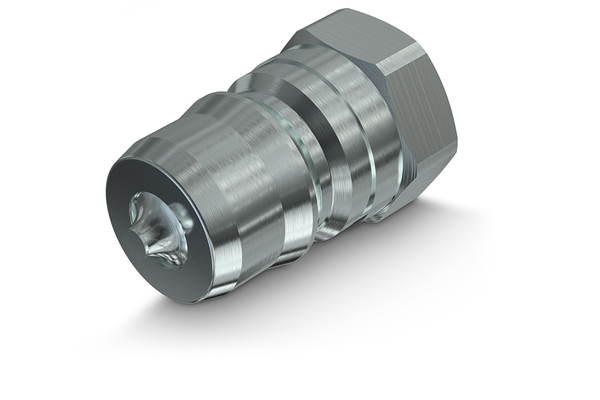

HNV 12-58SAE M
Faster HNV-Plug

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	350
  Thread + standard:	SAE (UNF) female-thread ISO 11926-1
  Thread [GA]:	7/8

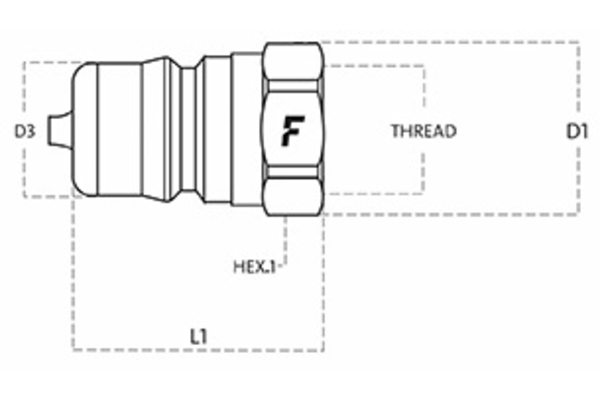

  Outer Ø plug [mm]:	23,5
  Length plug [mm]:	50,0
  SW [mm]:	30
  SW1 [mm]:	30
  l/min at ΔP=2 bar:	75
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1B
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	-25 °C to 125 °C
