HNV 34 NPT M
Faster HNV-Plug

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	250
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	3/4

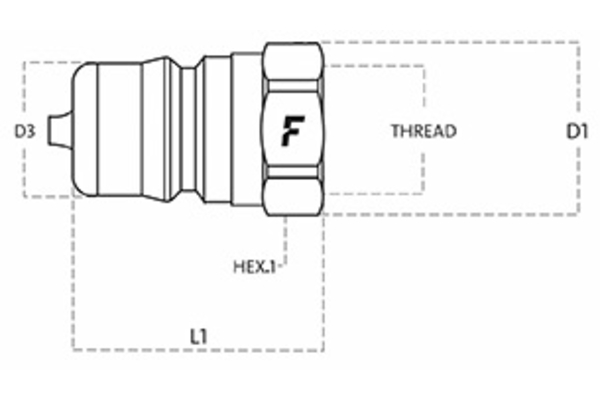

  Outer Ø plug [mm]:	31,5
  Length plug [mm]:	55,0
  SW [mm]:	34
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	190
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1B
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	-25 °C to 125 °C
