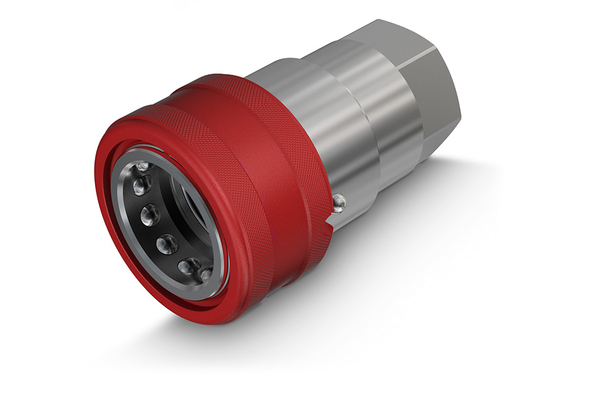

HNVFR 34 NPT F
Faster HNVFR-Sleeve

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	210
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	3/4
  Outer Ø sleeve [mm]:	56,2
  Length sleeve [mm]:	89,0
  SW [mm]:	36
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	190
  Applications:	Oil & Gas applications
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	Special
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-1B
  Surface:	Mate 500 (Chrom III)
  Temperature range [°C]:	BOP
