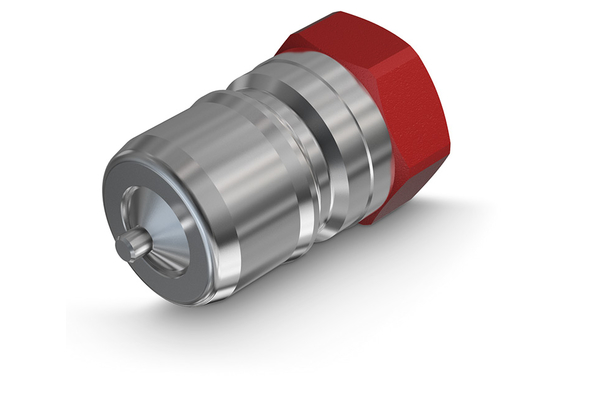

HNVFR male coupling

Standard couplings for industrial applications, ISO 7241-B interchange, BOP certified

To accessories

Detail

Art. No.

HNVFR 12 NPT M

HNVFR 34 NPT M

HNVFR 1 NPT M

Size

Inch

1/2

3/4

working pressure [bar]

210

230

Thread + standard

NPT female-thread ANSI B1.20.3

Thread [GA]

1/2

3/4

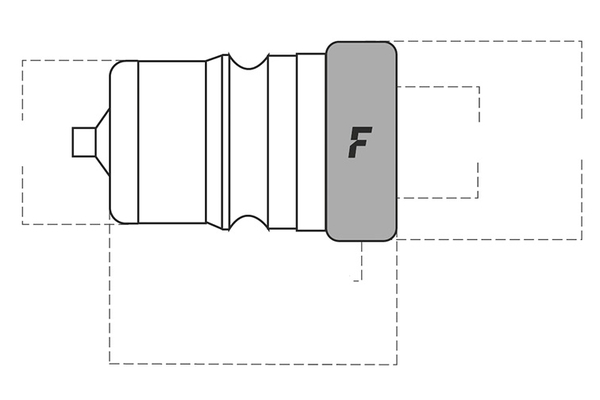

Outer Ø plug [mm]

23,5

31,5

37,8

Length plug [mm]

44,0

55,0

66,0

SW [mm]

SW1 [mm]

l/min at ΔP=2 bar

190

270

Quantity

Product info

Technical data

Applications:	Oil & Gas applications
Female or male coupling:	Plug
Material Casing:	Steel
Material sealing:	Special
Resistance against red rust [h]:	500
Standard:	ISO 7241-1B
Surface:	Mate 500 (Chrom III)
Temperature range [°C]:	BOP

Benefit

Special version derived from HNV couplings purposely designed for BOP applications and API 16 D certified. Interchangeable according to ISO 7241-B standards.
