NS 12 NPT F
Faster NS-Sleeve

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	200
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1/2

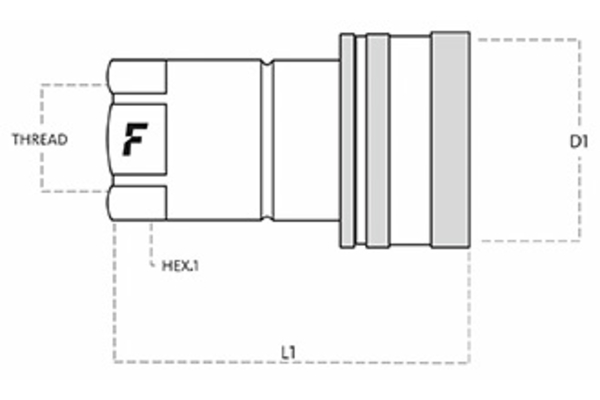

  Outer Ø sleeve [mm]:	38,0
  Length sleeve [mm]:	68,0
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	50
  Applications:	Agriculture, construnction equipment, industrial
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
