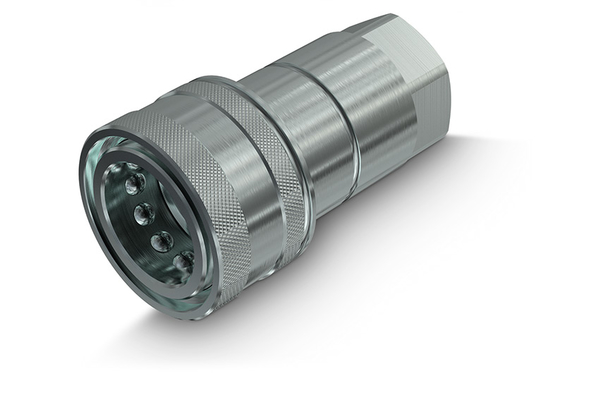

NS 34 GAS F
Faster NS-Sleeve

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	170

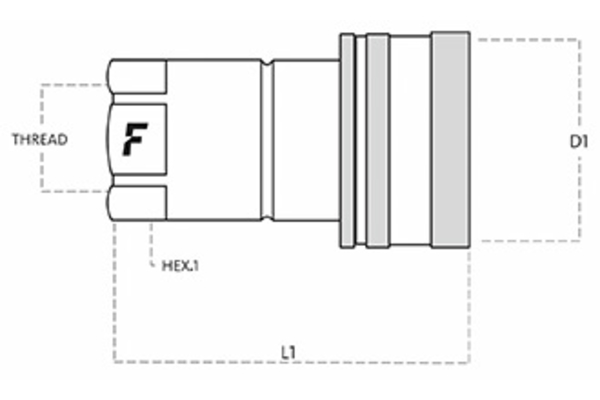

  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/4
  Outer Ø sleeve [mm]:	48,0
  Length sleeve [mm]:	82,5
  SW1 [mm]:	34
  l/min at ΔP=2 bar:	80
  Applications:	Agriculture, construnction equipment, industrial
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
