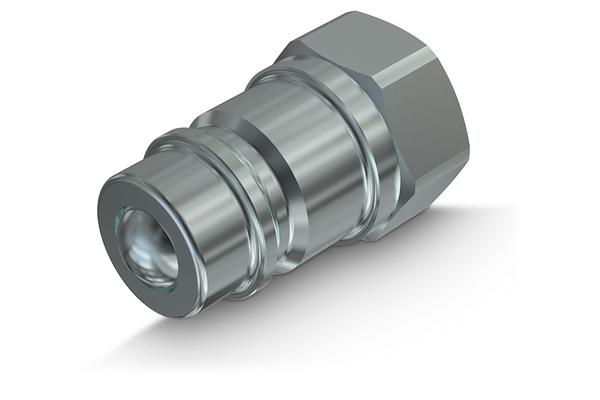

NS 1 NPT M
Faster NS-Plug

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	220
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1

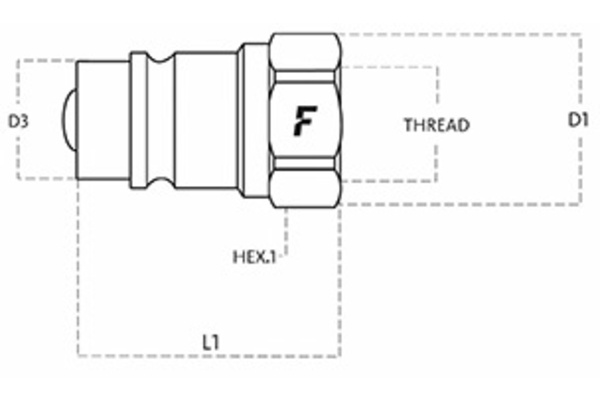

  Outer Ø plug [mm]:	31,3
  Length plug [mm]:	63,0
  Form of the sealing valve:	Ball
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	140
  Applications:	Agriculture, construnction equipment, industrial
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C

Benefit
