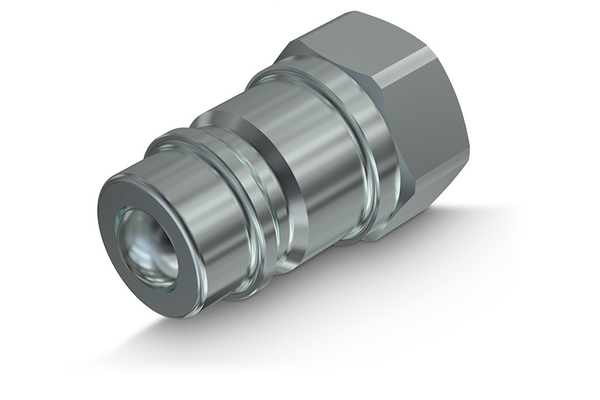

NS male coupling

Similar image
Similar image

Standard couplings with ball valve. Faster interchangeability (except size 12,5)

To accessories

Detail

Art. No.
NS 14 GAS M
%
SALE
NS 14 NPT M
%
SALE
NS 38 GAS M
%
SALE
NS 38 NPT M
%
SALE
NS 12 GAS M
%
SALE
NS 12 NPT M
%
SALE
NS 34 GAS M
%
SALE
NS 34 NPT M
%
SALE
NS 1 GAS M
%
SALE
NS 1 NPT M
%
SALE
Size
1
1
2
2
3
3
4
4
6
6
DN
06
06
10
10
12
12
20
20
25
25
Size
04
04
06
06
08
08
12
12
16
16
Inch
1/4
1/4
3/8
3/8
1/2
1/2
3/4
3/4
1
1
working pressure [bar]
250
250
250
250
200
200
170
170
220
220
Thread + standard
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP Innengewinde ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
Thread [GA]
1/4
1/4
3/8
3/8
1/2
1/2
3/4
3/4
1
1
Outer Ø plug [mm]
14,1
14,1
18,9
18,9
20,5
20,5
27,9
27,9
31,3
31,3
Length plug [mm]
34,7
33,0
39,0
39,0
46,0
46,0
53,5
53,0
63,0
63,0
Form of the sealing valve
Ball
Ball
Ball
Ball
Ball
Ball
Ball
Ball
Ball
Ball
SW1 [mm]
19
19
24
24
27
27
34
34
41
41
l/min at ΔP=2 bar
15
15
30
30
50
50
80
80
140
140
Quantity


Product info

  • Specifications
    Applications: Agriculture, construnction equipment, industrial
    Female or male coupling: Plug
    Material Casing: Steel
    Material sealing: NBR
    Resistance against red rust [h]: 500
    Surface: MATE 500 (CrIII)
    Temperature range [°C]: -25 °C to 125 °C

Benefit

Standard couplings for general purpose applications with ball valve shut-off system. Faster proprietary profile ( 1/2" size only is interchangeable according to ISO 7241 part A).
