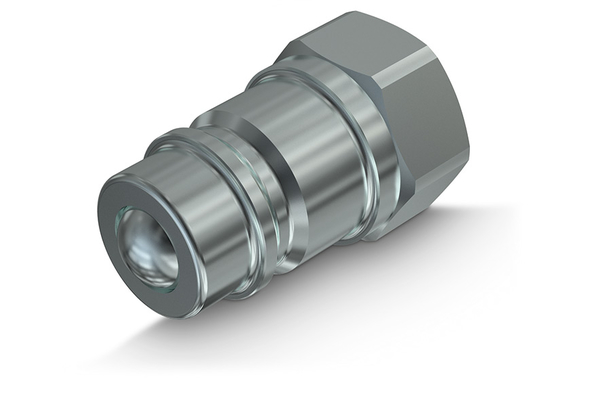

NS 38 GAS M
Faster NS-Plug

Product info

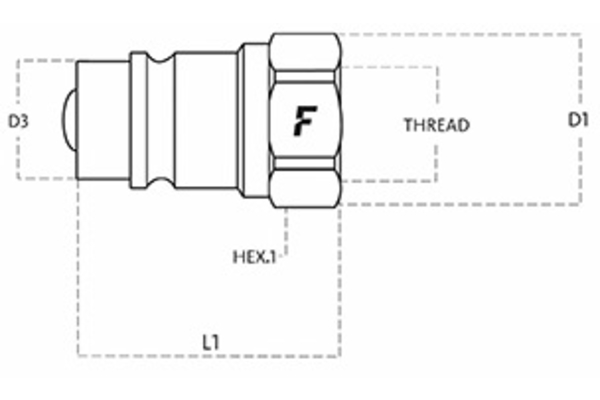

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	250
  Thread + standard:	BSP Innengewinde ISO 1179-1
  Thread [GA]:	3/8
  Outer Ø plug [mm]:	18,9
  Length plug [mm]:	39,0
  Form of the sealing valve:	Ball
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	30
  Applications:	Agriculture, construnction equipment, industrial
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
