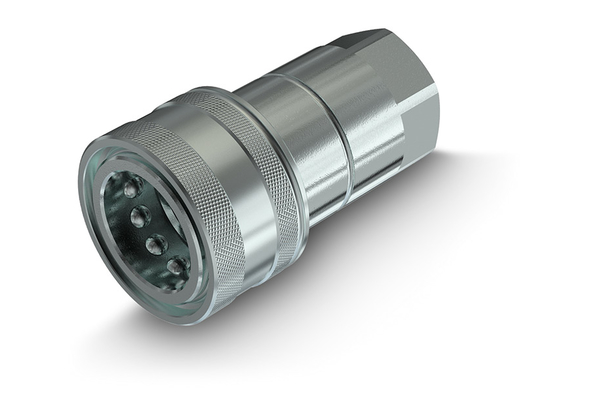

NV 14-38SAE F
Faster NV-Sleeve

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	350

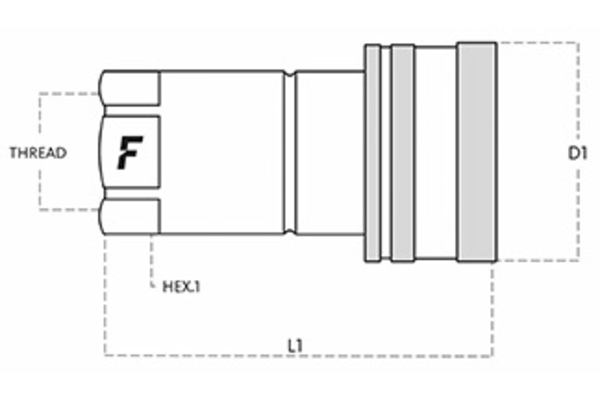

  Thread + standard:	SAE (UNF) female-thread ISO 11926-1
  Thread [GA]:	9/16
  Outer Ø sleeve [mm]:	27,0
  Length sleeve [mm]:	52,5
  SW [mm]:	19
  SW1 [mm]:	19
  l/min at ΔP=2 bar:	15
  Applications:	Agriculture, Construction Equipment, Industrial
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
