NV 38 GAS F

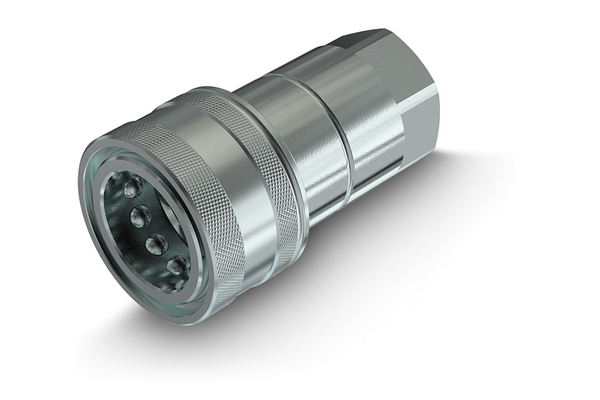

Faster NV-Sleeve

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	300
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/8

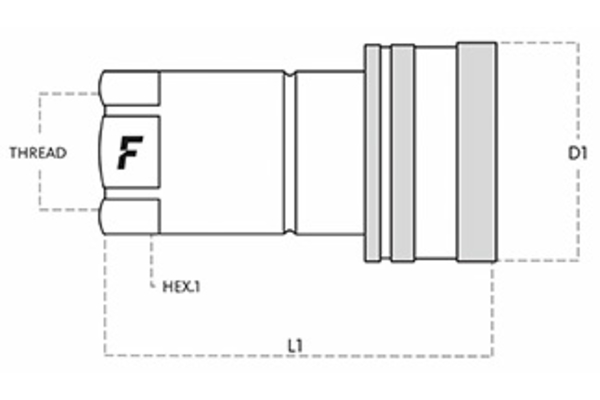

  Outer Ø sleeve [mm]:	33,0
  Length sleeve [mm]:	59,6
  SW [mm]:	24
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	50
  Applications:	Agriculture, Construction Equipment, Industrial
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
