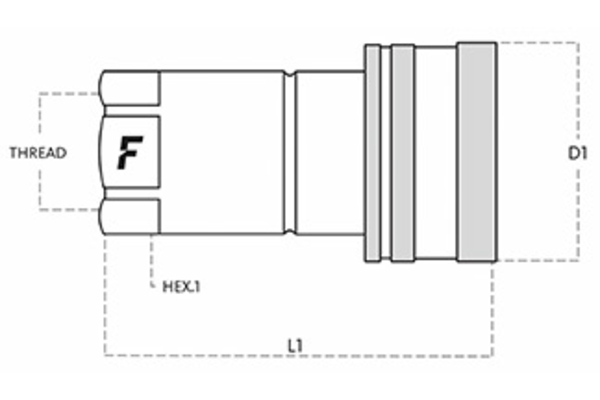

NV112 NPT F
Faster NV-Sleeve

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  working pressure [bar]:	200
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1.1/2
  Outer Ø sleeve [mm]:	84,0
  Length sleeve [mm]:	127,5
  SW [mm]:	60
  SW1 [mm]:	60
  l/min at ΔP=2 bar:	450
  Applications:	Agriculture, Construction Equipment, Industrial
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
