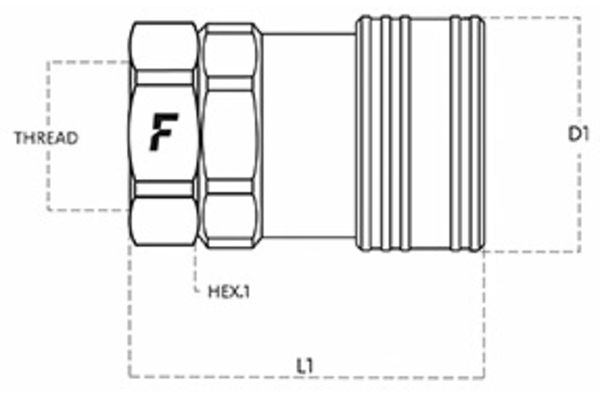

TNV 20 NPT F
Faster TNV-Sleeve

Product info

• Technical data

  DN:	32
  Size:	20
  Inch:	1.1/4
  working pressure [bar]:	100
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1.1/4

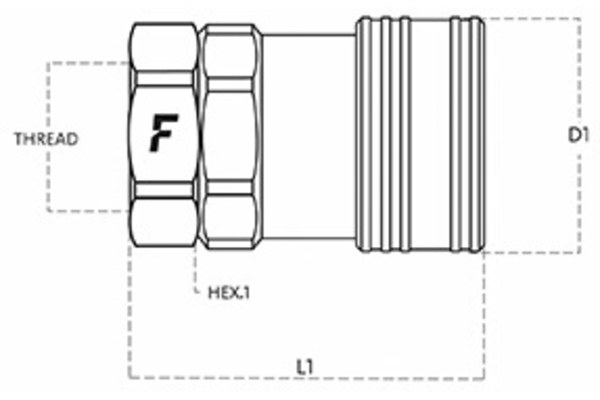

  Outer Ø sleeve [mm]:	56,0
  Length sleeve [mm]:	97,0
  SW [mm]:	50
  SW1 [mm]:	50
  l/min at ΔP=2 bar:	450
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
