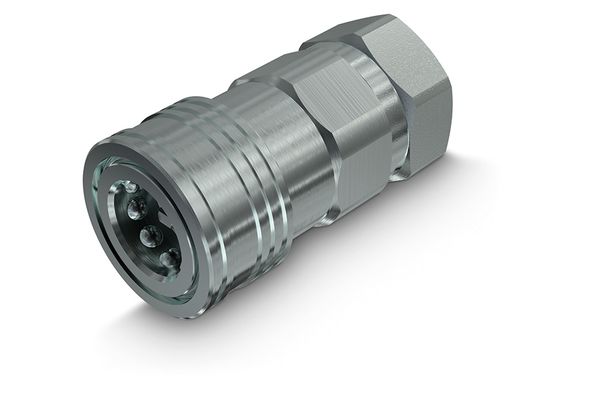

TNV120/34GAS F
Faster TNV-Sleeve

Product info

• Technical data

  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	170

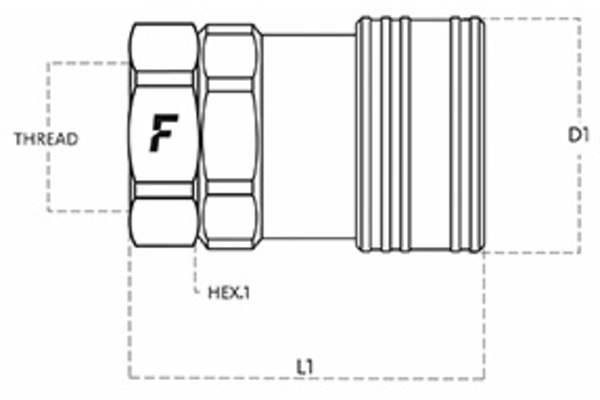

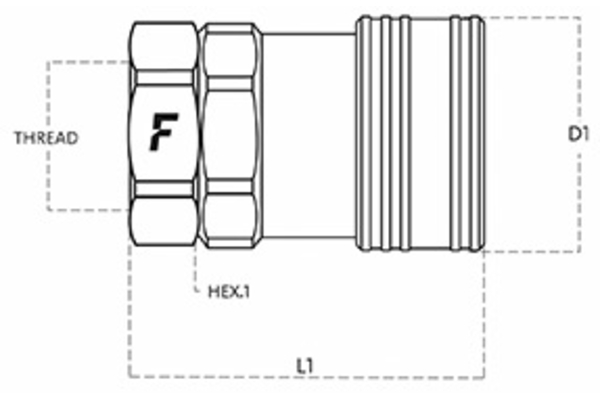

  Thread + standard:	BSP female-thread ORB BS 5380
  Thread [GA]:	3/4
  Outer Ø sleeve [mm]:	40,0
  Length sleeve [mm]:	85,5
  SW [mm]:	34
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	170
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
