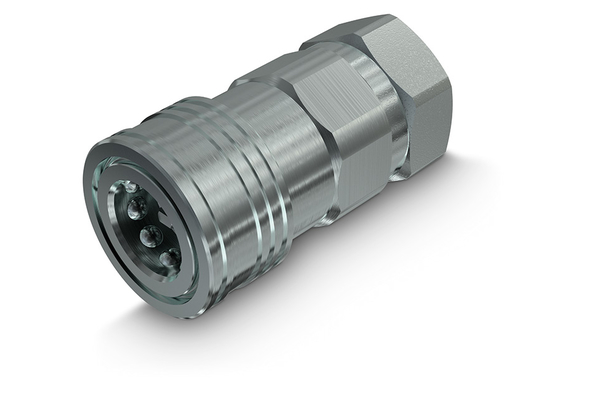

TNV160/1GAS F
Faster TNV-Sleeve

Product info

• Technical data

  Size:	16
  Inch:	1
  working pressure [bar]:	150
  Thread + standard:	BSP female-thread ORB BS 5380
  Thread [GA]:	1

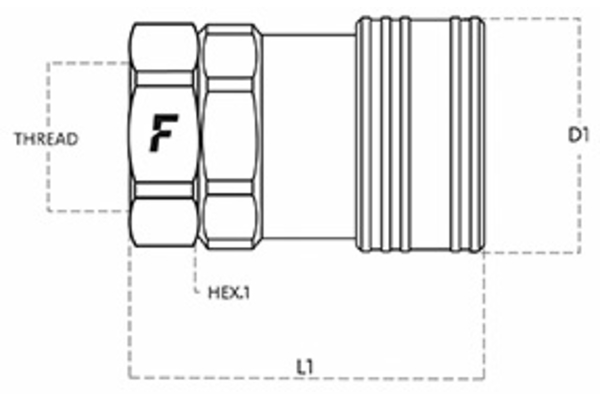

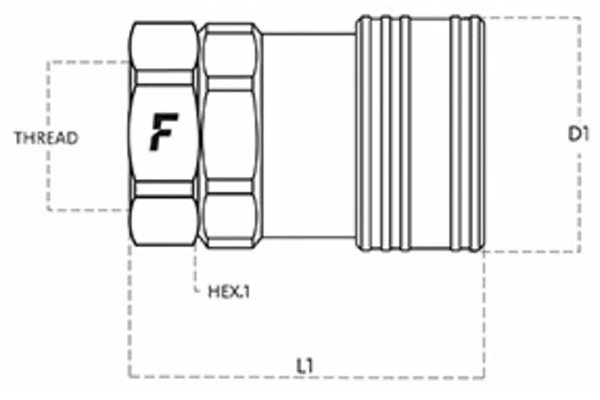

  Outer Ø sleeve [mm]:	50,5
  Length sleeve [mm]:	71,0
  SW [mm]:	46
  SW1 [mm]:	46
  l/min at ΔP=2 bar:	280
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
