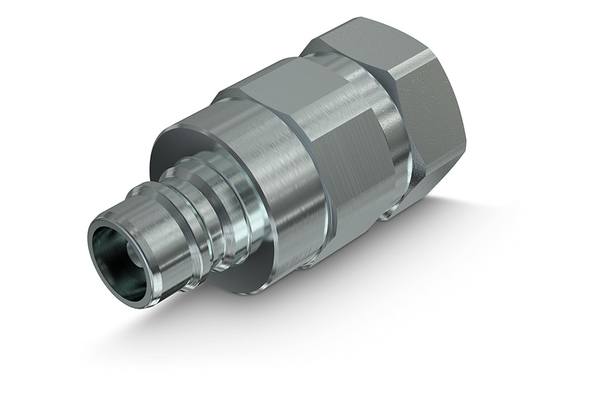

TNV 04 NPT M
Faster TNV-Plug

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	270
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1/4

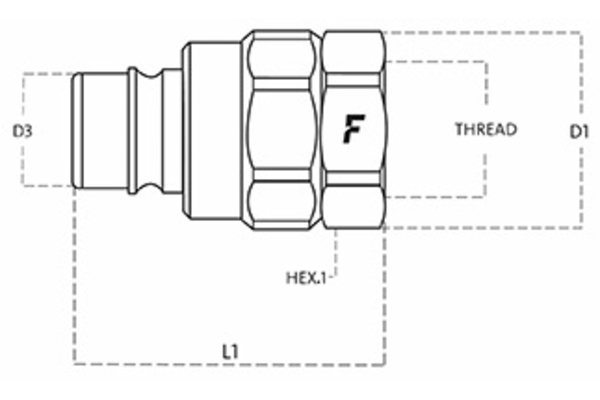

  Outer Ø plug [mm]:	10,8
  Length plug [mm]:	49,0
  SW [mm]:	21
  SW1 [mm]:	21
  l/min at ΔP=2 bar:	22
  Applications:	Industrial, Oil & Gas
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
