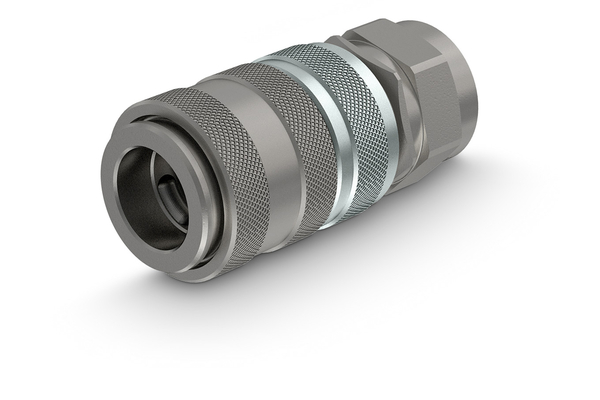

UHP100 female coupling

Detail

Art. No.
DN
06
06
Size
04
04
Inch
1/4
1/4
working pressure [bar]
1000
1000
Thread + standard
NPT female ANSI B1.20.3
BSP female-thread (metal sealing) ISO 1179-1
Thread [GA]
1/4
1/4

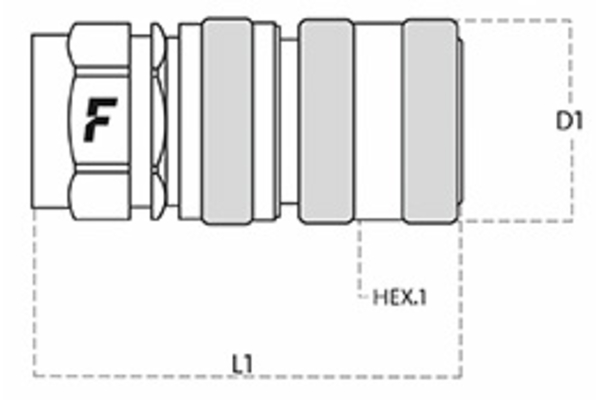

Outer Ø sleeve [mm]
28,0
28,0
Length sleeve [mm]
59,3
62,3
SW [mm]
24
24
SW1 [mm]
24
24
l/min at ΔP=2 bar
4
4
Quantity
