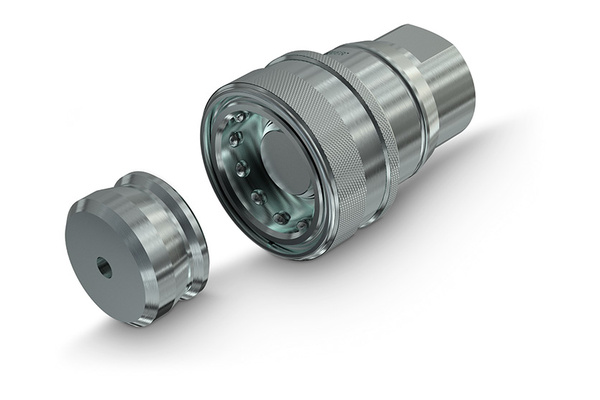

VFB 12 GAS F
Faster VF-Sleeve

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	220
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1/2
  Outer Ø sleeve [mm]:	44,0
  Length sleeve [mm]:	84,0
  SW [mm]:	27
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	40
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Standard:	ISO 5676
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
