SK-HK06BSP10M

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	610
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/8
  Pipe Ø R [mm]:	IND_Oberflaechenbeschichtung
  Outer Ø sleeve [mm]:	36,0
  Length sleeve [mm]:	77,0
  Wrench size connection side sleeve:	22
  burst pressure plug uncoupled [bar]:	2600
  SW1 [mm]:	22
  burst pressure coupled [bar]:	2450
  burst pressure sleeve uncoupled [bar]:	2450
  l/min at ΔP=2 bar:	23
  Material:	steel
  Material support ring:	PTFE

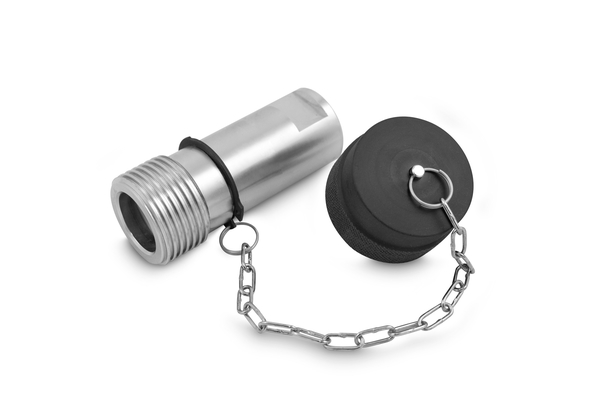

  Product title long:	Series SK-HK female coupling.
  Product title short:	female coupling
