SK-PVV06-04NPT10M
Screw coupling series SK-PVV (female)

Product info

• Technical data

  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	1000
  Thread + standard:	ANSI B1.20.3
  Thread [GA]:	NPTF 1/4" MALE

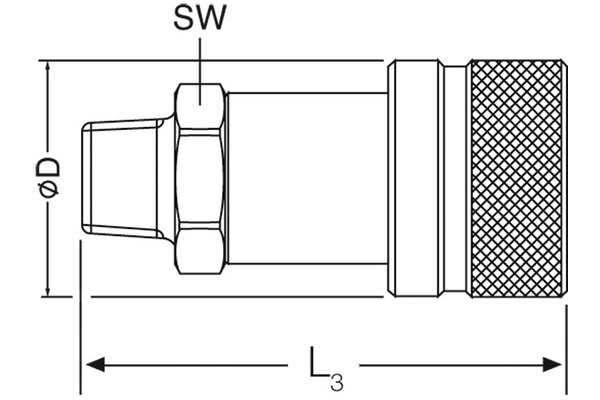

  Outer Ø sleeve [mm]:	36
  Length sleeve [mm]:	148,7
  SW1 [mm]:	25
  l/min at ΔP=2 bar:	20
  Applications:	hydraulic hand tools, rescue equipment
  Female or male coupling:	sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	Series SK-PVV female coupling.
  Product title short:	female coupling
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C /+125 °C
