Art. No.: SK-PVV04NPT06S
List number: 23645050

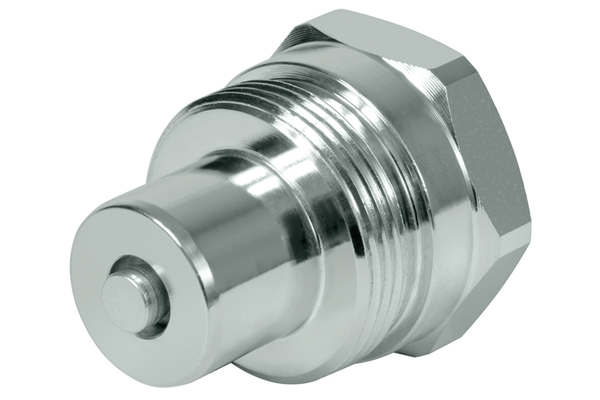

Screw-on couplings purposely designed for the heaviest applications (e.g.: hydraulic jacks for bridge maintenance). Equipped with a robust metal-to-metal sealing poppet valve, this series guarantees the best performance on the market in terms of maximum working pressure. ISO 14540 interchange.
| Size: | 1 |
| DN: | 06 |
| Size: | 04 |
| Inch: | 1/4 |
| working pressure [bar]: | 1030 |
| Thread + standard: | NPT female thread DIN 3863 |
| Thread [GA]: | 1/4 |
| Outer Ø plug [mm]: | 30,0 |

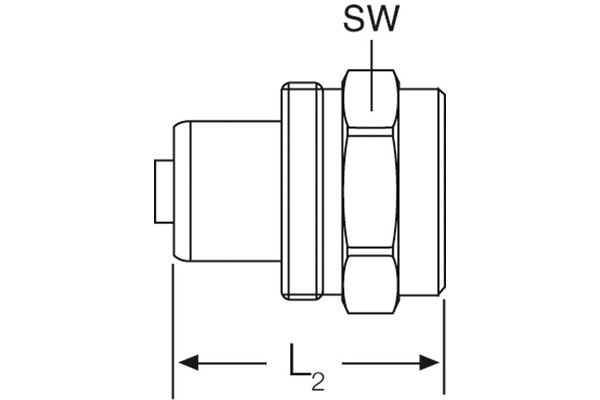

| Length plug [mm]: | 34,0 |
| Wrench size connection side plug: | 27 |
| SW1 [mm]: | 27 |
| l/min at ΔP=2 bar: | 15 |
| L1 [mm]: | -19 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |
| Product title long: | Series SK-PVV male coupling. |
| Product title short: | male coupling |
Reserve technical changes.
