| Size: | 2 |
| DN: | 10 |
| Size: | 06 |
| Inch: | 3/8 |
| working pressure [bar]: | 1000 |
| Thread + standard: | NPT male thread DIN 3863 |
| Thread [GA]: | 3/8 |
| Outer Ø plug [mm]: | 35,0 |
| Length plug [mm]: | 39,0 |

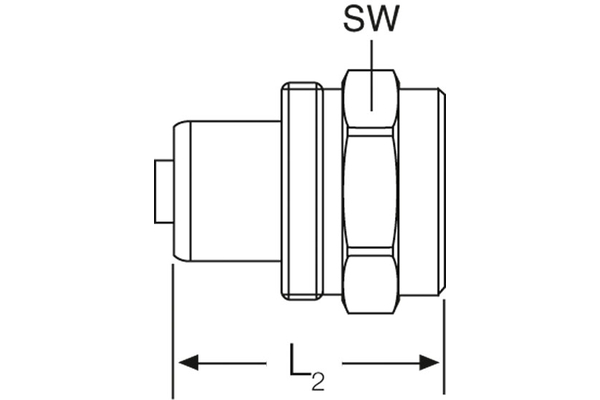

| Wrench size connection side plug: | 32 |
| SW1 [mm]: | 32 |
| l/min at ΔP=2 bar: | 20 |
| L1 [mm]: | -25 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |
| Product title long: | Series SK-PVV male coupling. |
| Product title short: | male coupling |
Reserve technical changes.
