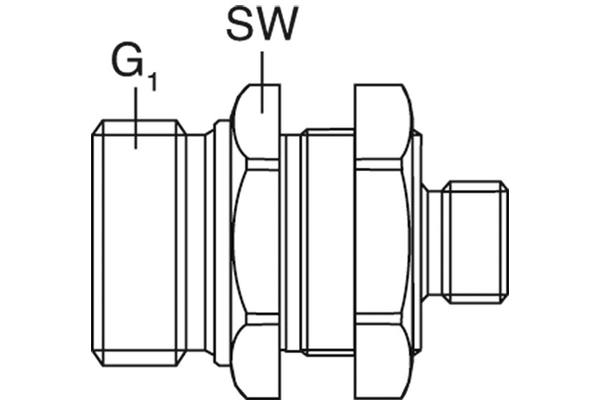

SK2-RK3-24CES16-10M
SK-RK sleeve

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	420
  Thread + standard:	Metric male-thread ISO 8434-1-S
  Thread [GA]:	M24X1,5
  Pipe Ø R [mm]:	24S
  Outer Ø sleeve [mm]:	32,0
  Connection thread:	Rd32X2
  Length sleeve [mm]:	62,0
  SW2 [mm]:	36
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	35
  Applications:	commercial vehicle industry
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Surface:	Zinc nickel
  Temperature range [°C]:	-25°C to +100°C
