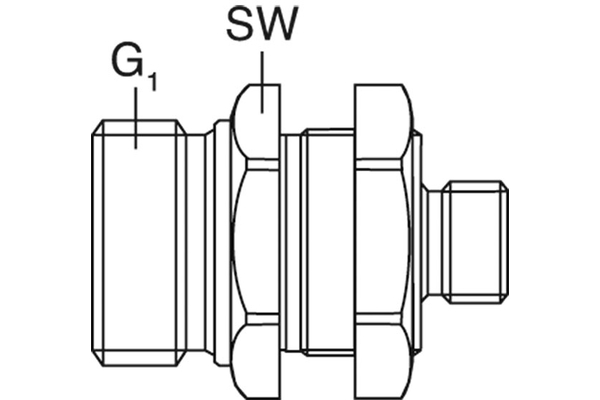

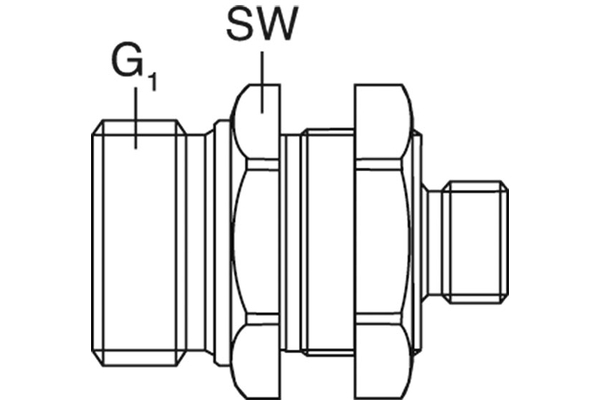

SK4-RK2-26CEL18-20M
SK-RK sleeve

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	420
  Thread + standard:	Metric male-thread ISO 8434-1-L
  Thread [GA]:	M26x1,5
  Pipe Ø R [mm]:	18L
  Outer Ø sleeve [mm]:	48,0
  Connection thread:	Rd48x3
  Length sleeve [mm]:	81,0
  Wrench size connection side sleeve:	36
  SW2 [mm]:	50
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	120
  Applications:	commercial vehicle industry
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Surface:	Zinc nickel
  Temperature range [°C]:	-25°C to +100°C
