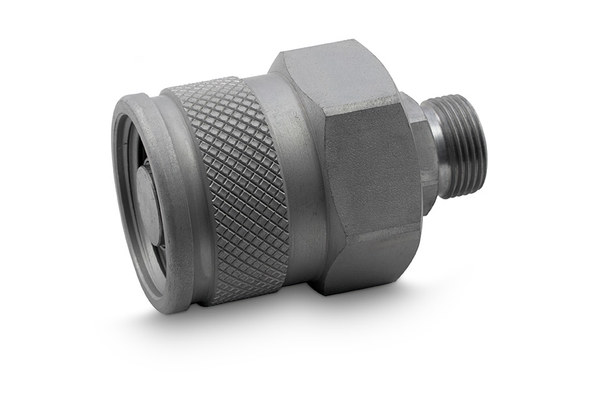

SK3-RK3-24CES16-12S
Screw coupling SK-RK plug

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	420
  Thread + standard:	Metric male-thread ISO 8434-1-S
  Thread [GA]:	M24x1,5
  Pipe Ø R [mm]:	16S
  Outer Ø plug [mm]:	52,0
  Connection thread:	Rd36x3
  Length plug [mm]:	75,4
  Wrench size connection side plug:	24
  SW1 [mm]:	46
  SW1 [mm]:	46
  l/min at ΔP=2 bar:	75
  Applications:	commercial vehicle industry
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Surface:	Zinc nickel
  Temperature range [°C]:	-25°C to +100°C
