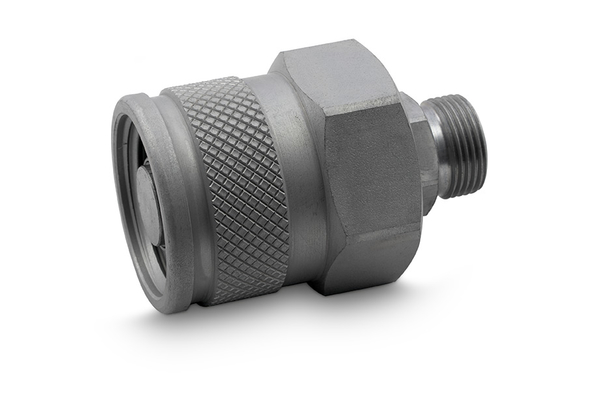

SK6-RK3-42CES30-25S
Screw coupling SK-RK plug

Product info

• Technical data

  Size:	6
  DN:	25
  Inch:	1
  working pressure [bar]:	420
  Thread + standard:	Metric male-thread ISO 8434-1-S
  Thread [GA]:	M42x2
  Pipe Ø R [mm]:	30S
  Outer Ø plug [mm]:	64,5
  Connection thread:	Rd54x4
  Length plug [mm]:	125,5
  SW2 [mm]:	41
  SW1 [mm]:	55
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	189
  Applications:	commercial vehicle industry
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Surface:	Zinc nickel
  Temperature range [°C]:	-25°C to +100°C
