SK2-VV2-16CEL10-10S
Screw coupling series SK-VSV (male)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	400
  Thread + standard:	Metric male-thread ISO 8434-1-L
  Thread [GA]:	M16x1,5
  Pipe Ø R [mm]:	10L

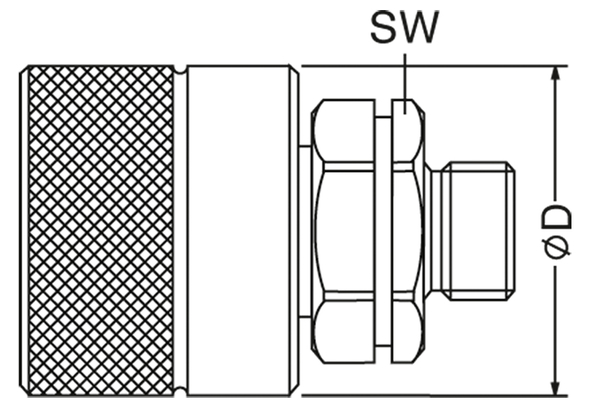

  Outer Ø plug [mm]:	34,0
  Connection thread:	28x2
  Length plug [mm]:	66,0
  Can be coupled under pressure:	Allowed under residual pressure
  SW1 [mm]:	24
  l/min at ΔP=2 bar:	25
  Applications:	Construction Equipment, Vehicles & Road Machines, Agriculture
  Female or male coupling:	Male
  Material Casing:	Steel
  Material sealing:	DN 06-10: NBR , DN 12-38: FKM (Viton(R))
  Material support ring:	PTFE
  Resistance against red rust [h]:	500
  Standard:	ISO 14541
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	FKM: -25 °C up to +200 °C , NBR: -25 °C up to + 125 °C
