STSK-VV04BSP06M

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	350
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/4
  Outer Ø sleeve [mm]:	30,0
  Length sleeve [mm]:	59,7

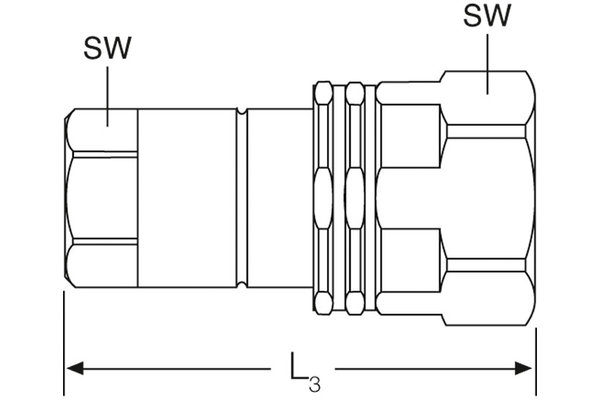

  SW [mm]:	19
  Wrench size connection side sleeve:	19
  SW2 [mm]:	27
  SW1 [mm]:	19
  SW2 [mm]:	27
  l/min at ΔP=2 bar:	18
  Material:	C-steel, nitrified
  Material support ring:	PTFE
  Product title long:	. Series STSK-VV female coupling
  Product title short:	female coupling
