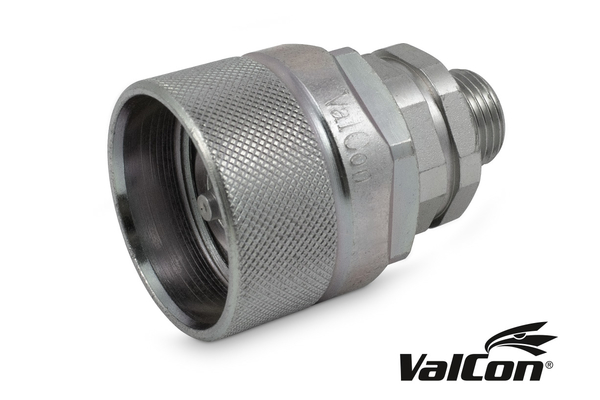

VC-HDS3-AG1/2BSP12S

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	400
  Thread + standard:	BSP male thread DIN 3863 (60°)
  Thread [GA]:	1/2
  Pipe Ø R [mm]:	-
  Outer Ø plug [mm]:	42,0
  Connection thread:	M36x2
  Length plug [mm]:	64,5
  burst pressure plug uncoupled [bar]:	1200
  SW2 [mm]:	36
  burst pressure coupled [bar]:	1400
  GL [mm]:	13
  SW1 [mm]:	30
  l/min at ΔP=2 bar:	90
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 male coupling.
  Product title short:	male coupling
