VC-HDS6-IG1BSP25S

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	333
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1
  Pipe Ø R [mm]:	-

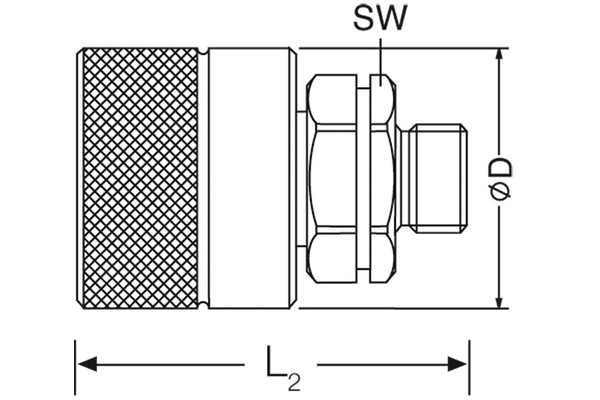

  Outer Ø plug [mm]:	60,0
  Connection thread:	M48x3
  Length plug [mm]:	87,5
  burst pressure plug uncoupled [bar]:	1000
  SW2 [mm]:	55
  burst pressure coupled [bar]:	1400
  SW1 [mm]:	41
  l/min at ΔP=2 bar:	280
  Form of the sealing valve:	poppet
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 male coupling.
  Product title short:	male coupling
