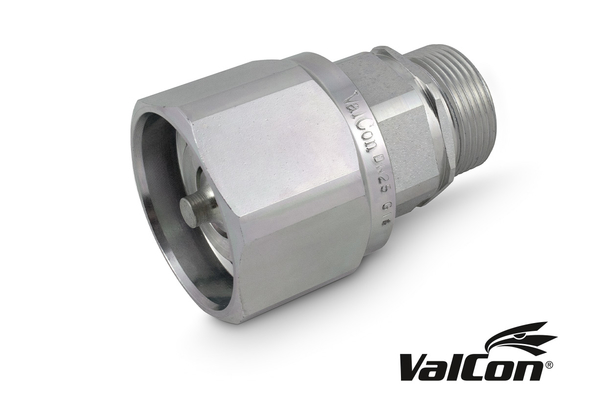

VC-HDS8-CES30-32S
Valcon® Screw coupling series VC-HDS8 (male)

Product info

• Technical data

  Size:	8
  DN:	32
  Size:	20
  Inch:	1 1/4
  working pressure [bar]:	333
  Thread + standard:	CE male thread heavy Series, DIN 3861
  Thread [GA]:	M42x2
  Pipe Ø R [mm]:	30S
  Outer Ø plug [mm]:	86,0
  Connection thread:	M70x3
  Length plug [mm]:	117,0
  burst pressure plug uncoupled [bar]:	1000
  SW2 [mm]:	80
  burst pressure coupled [bar]:	1000
  GL [mm]:	20
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	480
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	plug
  Form of the sealing valve:	poppet
  Material Casing:	Steel
  Material sealing:	NBR
  Material support ring:	PTFE
  Product title long:	Series VC-HDS 2-8 male coupling.
  Product title short:	male coupling
  Resistance against red rust [h]:	400 Std
  Resistance against white rust [h]:	100 Std
  Standard:	ISO 14541
  Surface:	Zn-Fe (Cr III)
  Temperature range [°C]:	-25°C to +100 °C
