ST-3FF12UNF-10S
Plug-in coupling series ST-3FF (male)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	350
  Thread + standard:	SAE (UNF) female-thread ORB ISO 11926-1
  Thread [GA]:	3/4

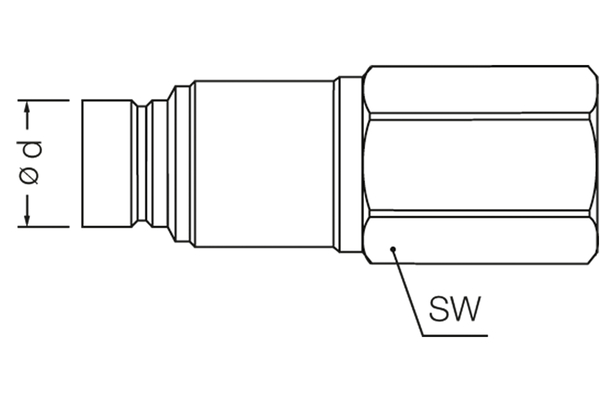

  Outer Ø plug [mm]:	19,7
  Length plug [mm]:	100,3
  Wrench size connection side plug:	30
  l/min at ΔP=2 bar:	35
  Applications:	Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	PU (AU), PTFE
  Resistance against red rust [h]:	1000
  Resistance against white rust [h]:	500
  Standard:	ISO 16028
  Surface:	Zinc-Nickel
  Temperature range [°C]:	-25°C to +100°C
  wrong type:	false
