Product info
-
Technical data

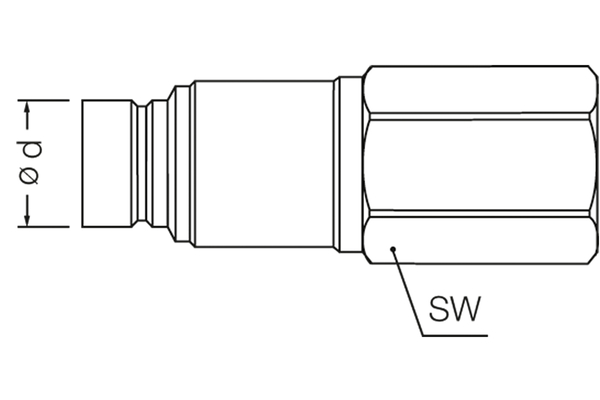

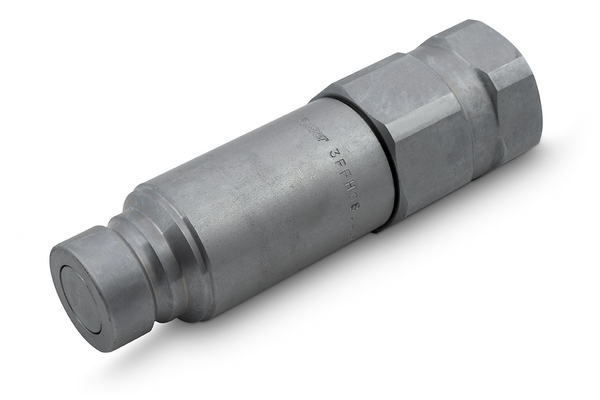

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 350 Thread + standard: SAE (UNF) female-thread ORB ISO 11926-1 Thread [GA]: 7/8 Outer Ø plug [mm]: 24,5 Length plug [mm]: 116,7 Wrench size connection side plug: 34 l/min at ΔP=2 bar: 65 Applications: Agriculture, Construction Equipment, Industrial, Offshore (Oil & Gas) applications, Vehicles and road machines Female or male coupling: Plug Material Casing: Steel Material sealing: PU (AU), PTFE Resistance against red rust [h]: 1000 Resistance against white rust [h]: 500 Standard: ISO 16028 Surface: Zn-Ni Temperature range [°C]: -25°C to +100°C wrong type: false
