| Size: | 4 |
| DN: | 20 |
| Size: | 12 |
| Inch: | 3/4 |
| working pressure [bar]: | 250 |
| Thread + standard: | NPT female thread DIN 3852 |
| Thread [GA]: | 3/4 |
| Outer Ø plug [mm]: | 29,1 |
| Length plug [mm]: | 57,0 |
| Wrench size connection side plug: | 34 |
| SW [mm]: | 35 |
| SW1 [mm]: | 34 |
| l/min at ΔP=2 bar: | 106 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |

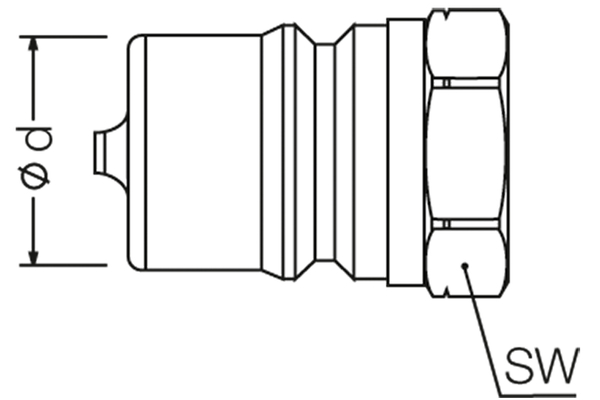

| Product title long: | Series ST-ANV male coupling. |
| Product title short: | male coupling |
Reserve technical changes.
