ST-C525UDK12BSP20S

Product info

• Technical data

  Size:	4
  DN:	20
  Size:	12
  Inch:	3/4
  working pressure [bar]:	200
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	3/4
  Outer Ø plug [mm]:	32,7
  Length plug [mm]:	47,0
  SW [mm]:	36
  SW1 [mm]:	36
  l/min at ΔP=2 bar:	163 L/min

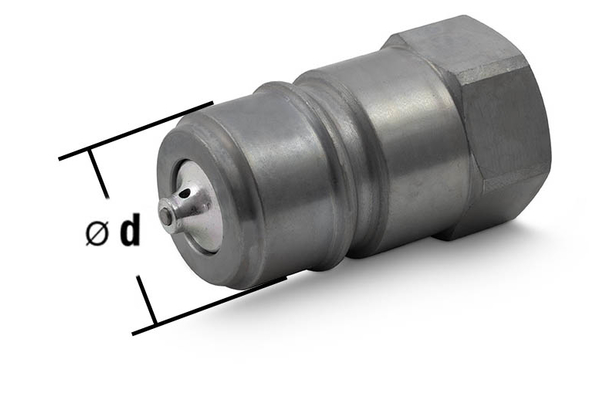

  Product title long:	Series ST-C525 male coupling.
  Product title short:	male coupling
  wrong type:	false
