| Size: | 1 |
| DN: | 03 |
| Size: | 04 |
| Inch: | 1/4 |
| working pressure [bar]: | 470 |
| Thread + standard: | BSP female DIN 3852, with O-Ring Port |
| Thread [GA]: | M14x1,5 |

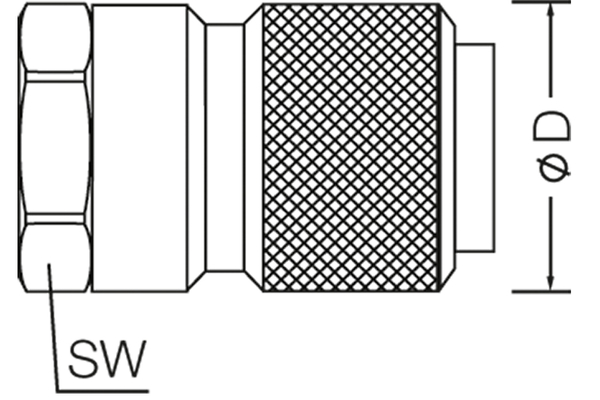

| Outer Ø sleeve [mm]: | 24,0 |
| SW [mm]: | 21 |
| Wrench size connection side sleeve: | 21 |
| l/min at ΔP=2 bar: | 2 |
| Material: | C-steel, nitrified |
| Product title long: | Series ST-DF female coupling. |
| Product title short: | female coupling |
Reserve technical changes.
