| Size: | 4 |
| DN: | 20 |
| Size: | 12 |
| Inch: | 3/4 |
| working pressure [bar]: | 220 |
| Thread + standard: | BSP female DIN 3852 |
| Thread [GA]: | 3/4 |
| Outer Ø sleeve [mm]: | 52,0 |
| Length sleeve [mm]: | 91,5 |
| SW [mm]: | 34 |
| Wrench size connection side sleeve: | 34 |
| SW1 [mm]: | 34 |
| l/min at ΔP=2 bar: | 106 |
| Material: | AISI 316; (1.4436) |
| Material support ring: | PTFE |

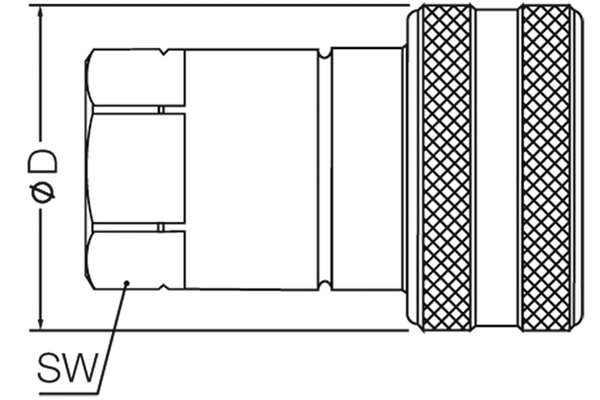

| Product title long: | Series ST-HNV-VA female coupling. |
| Product title short: | female coupling |
Reserve technical changes.
